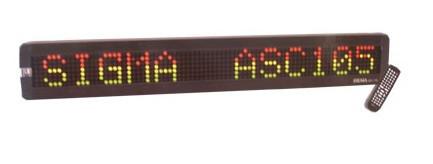

Техническое описание продукта P7.62MM 650mmx100mm x 35m INDOOR TWO COLOR LED MOVING SIGN Product model number PH7.62-D/I1R-L650H100
1. Pixel
Pixel pitch (mm) 7.62mm
Pixel diameter(mm) 5mm
Wave length (nm) R: 626-628, G: 518-520
Pixel configuration 1R1G
2. Unit board
Unit board size (mm) 60.96*60.96
Unit board resolution (dots) 8*8
3. Cabinet Size
Cabinet Size 659*100*35mm (including the Frame)
Unit Cabinet resolution (dots) 80x7 dots
4. Packaging
Packaging method Packed by Carton or wooden case
5. Electricity parameter
Density (Real) (dots/m^2) 17222
Density (Virtual) (dots/m^2) --------
Brightness (cd/m^2) ≥800
Viewing angle(angle) 110 (horizontal); 70(vertical)
Best viewing distance(m) 4-30
Driving mode Constant driving 1/16 scanning
Control mode Asynchronous transfer
In-interface RS232
Control distance(m) ≤100
Software Support windows series system
Temperature for storage -30~70℃℃
Working temperature -10~50℃℃
Humidity 10%~90%
Life Time (hr) ≥50,000
Out of control dots(scattered) ≤3/10,000
Maintenance mode From the back side
Switch power supply AC 110/220v v±10%, 47-64Hz (single phase)
Max Power Consumption (W/m2) 350
Avg Power Consumption (W/m2) 250
PS: Минимальная артия 20 штук! |
